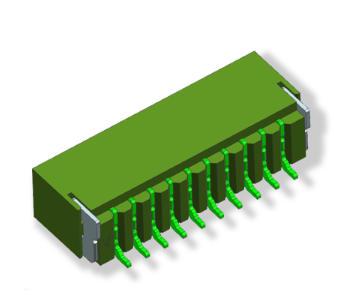

Smt Electronic Components Connectors 1.0mm Pitch Wafer WTB Connector SGS

Name: Smt Electronic Components Connectors 10mm Pitch Wafer WTB Connector SGS
Brand: WINSHOR
Price: 1 USD

Smt Electronic Components Connectors 1.0mm Pitch Wafer WTB Connector SGS Manufactures

Brand Name : WINSHOR

Model Number : WF10001-0XX-R00X02

Certification : ROHS,SGS,ISO

Place of Origin : China

MOQ : Customize

Payment Terms : T/T

Delivery Time : 1-3 weeks

Packaging Details : Reel

Pitch : 1.0mm

Pins : 2-30PINS

Height : 3.0mm

HOUSING : HIGH-TEMP THERMOPLASTIC UL94V-O,COLOR:NATURAL

TERMINAL : COPPER ALLOY,PLATNG:GOLD FLASH

SMT : Horizontal Smt

Current rating : 0.5A

Temperature range : -25C~85C

Contact Now

WTB 1.0mm Pitch Wafer Wire To Board Connector Horizontal Smt Height 3.0mm

Smt Electronic Components Connectors 1.0mm Pitch Wafer WTB Connector SGS

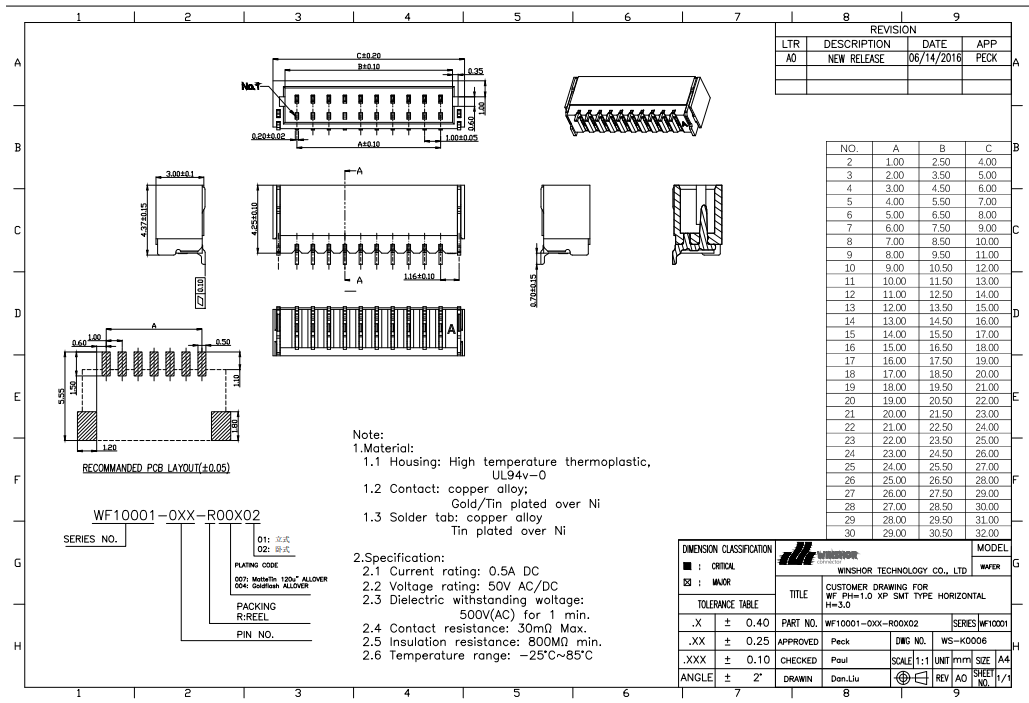

2.Specification:
2.1 Current rating:0.5A DC
2.2 Voltage rating:50V AC/DC
2.3 Dielectric withstanding woltage:500V(AC)for 1 min.
2.4 Contact resistance:30m?Max.
2.5 Insulation resistance:800MΩ min.
2.6 Temperature range:-25C~85℃

Smt Electronic Components Connectors 1.0mm Pitch Wafer WTB Connector SGS
